Public Facility Renderings:

3d renderings for the Sonoma County Water Agency which was to originally build a new facility as shown below until an existing building was found elsewhere and these plans were scrapped which is why the front elevation was never finalized.  The rear rendering shows both the main building and the maintenance facility as well.  Site located in Santa Rosa, CA.



3d Rear Elevation.



3d Front Rendering - Unfinished.

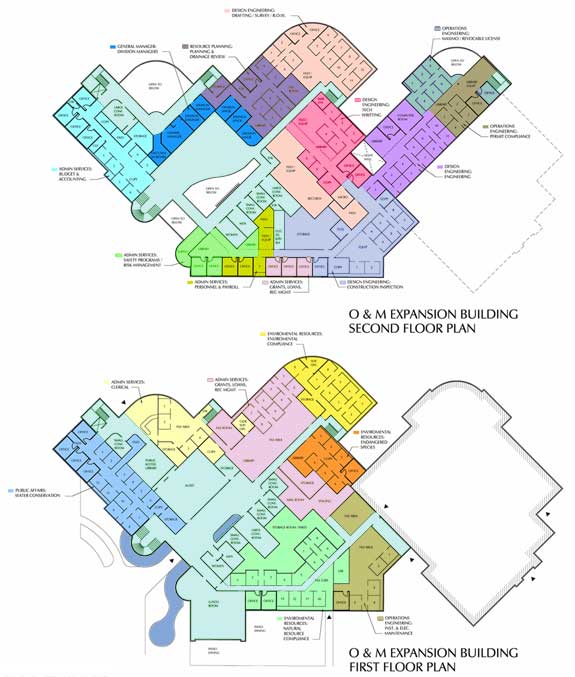

2d First and Second Floor Plan with color coded zones for Facility Management Planning.
